Heating elements for water baths

Sort By:

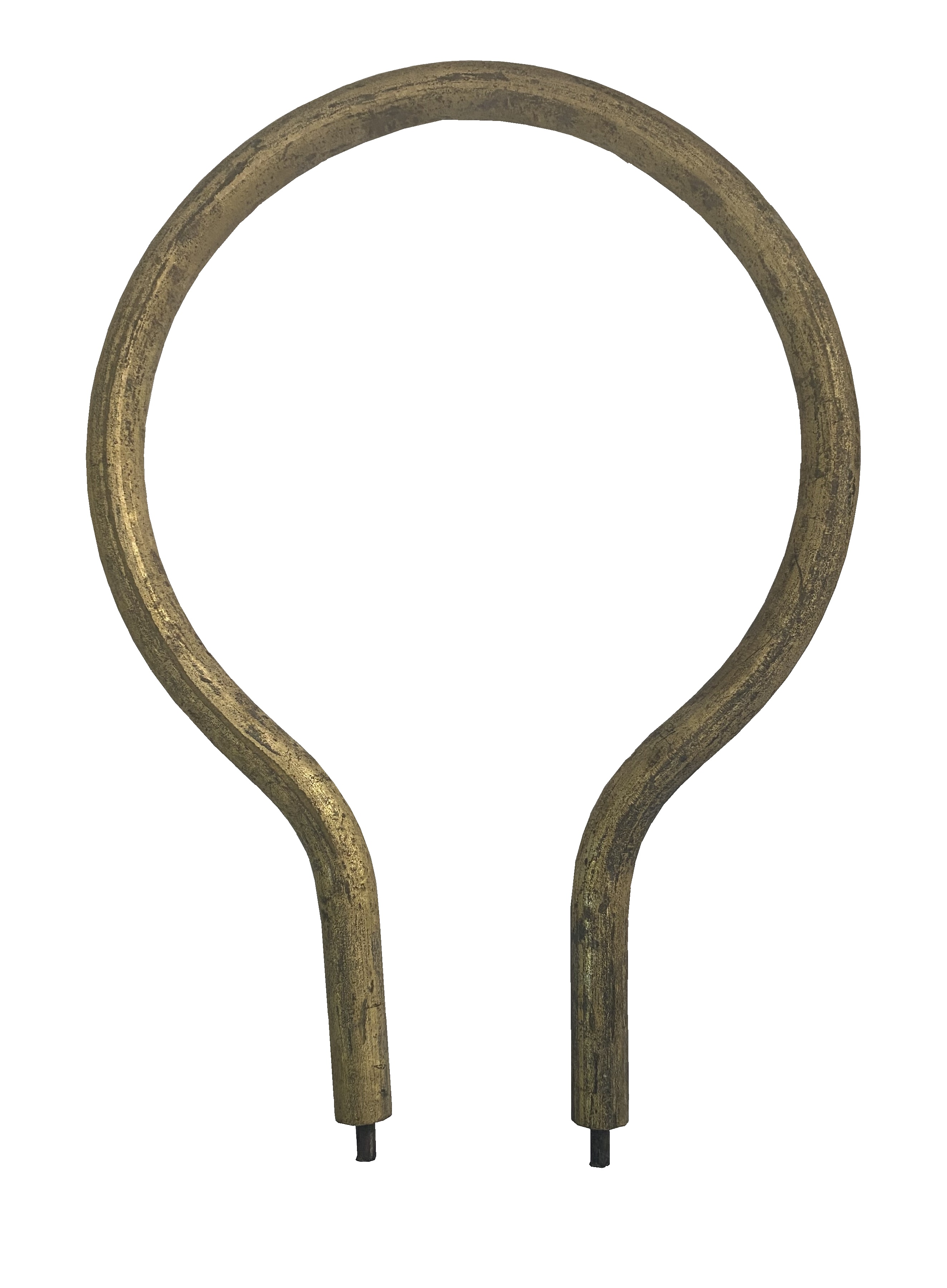

Heating element for paraffin heater PE-6 (6 l.) type A

900.00 грн

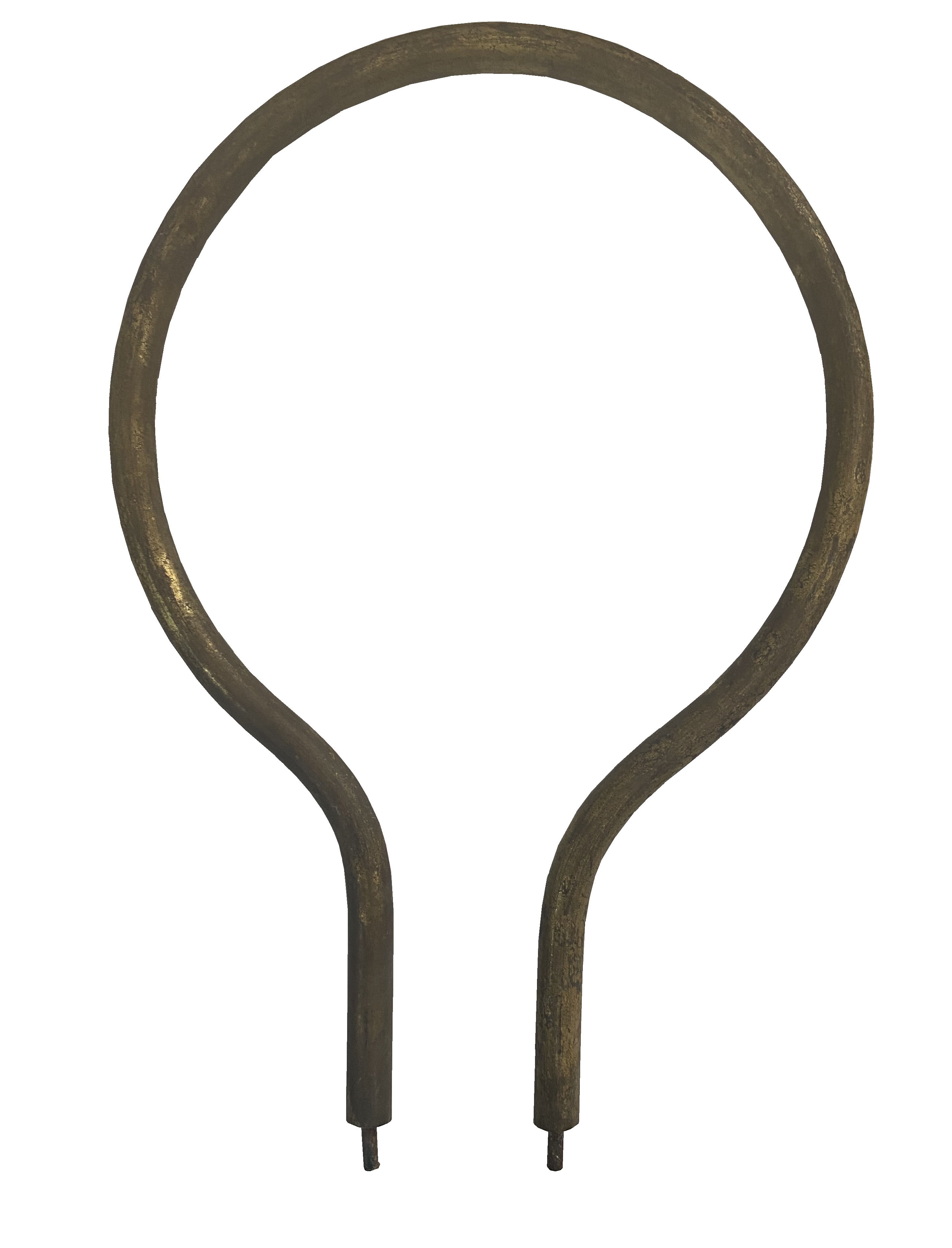

Heating element for paraffin heater PE-6 (6 l.) type B

900.00 грн

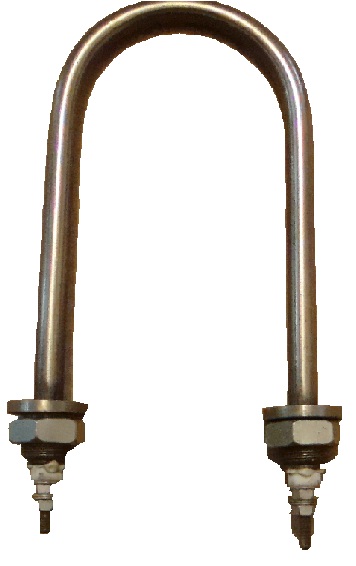

T-2 Heating element bath WB-2

1,155.00 грн

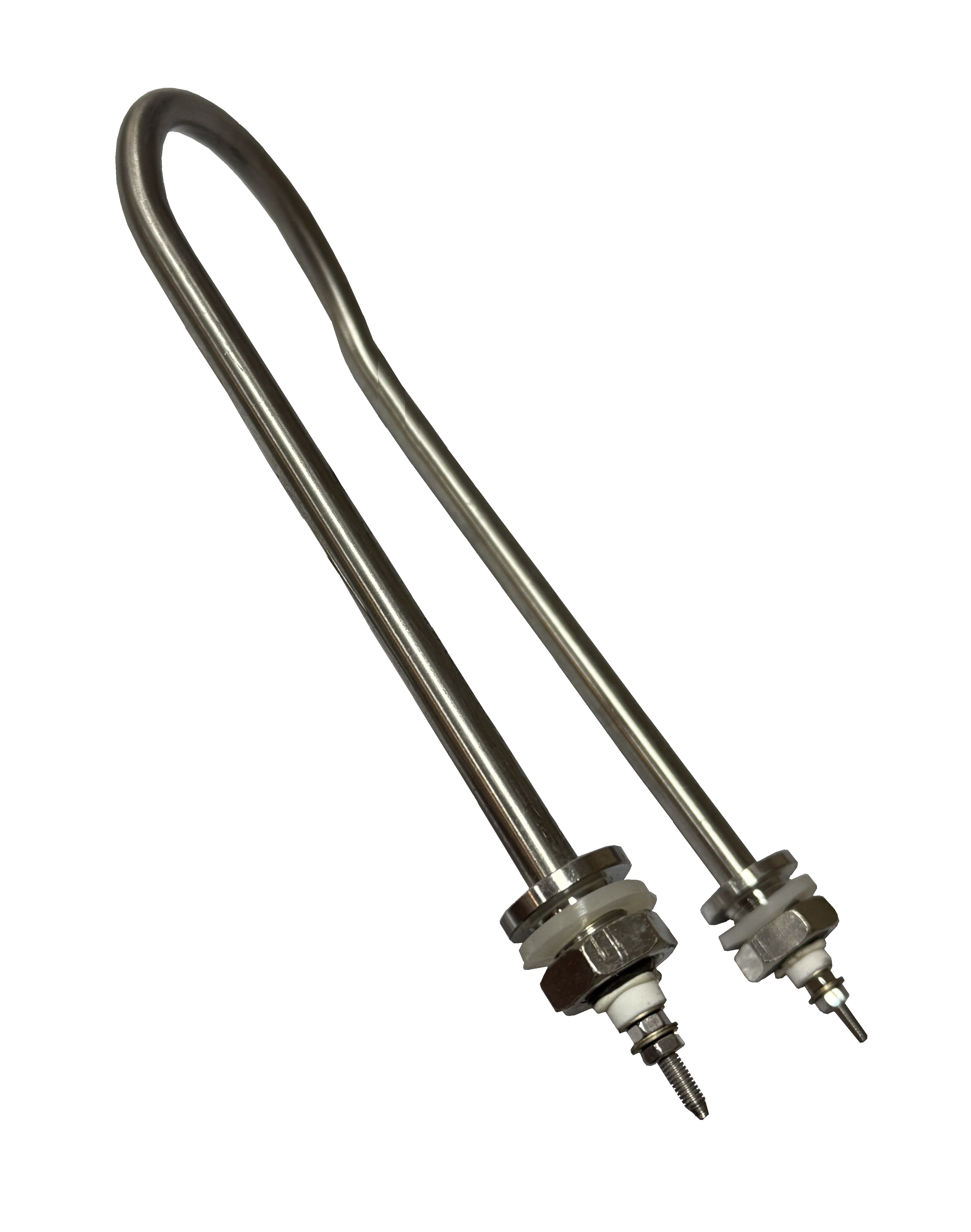

T-4 Heating element bath WB-4.

1,400.00 грн

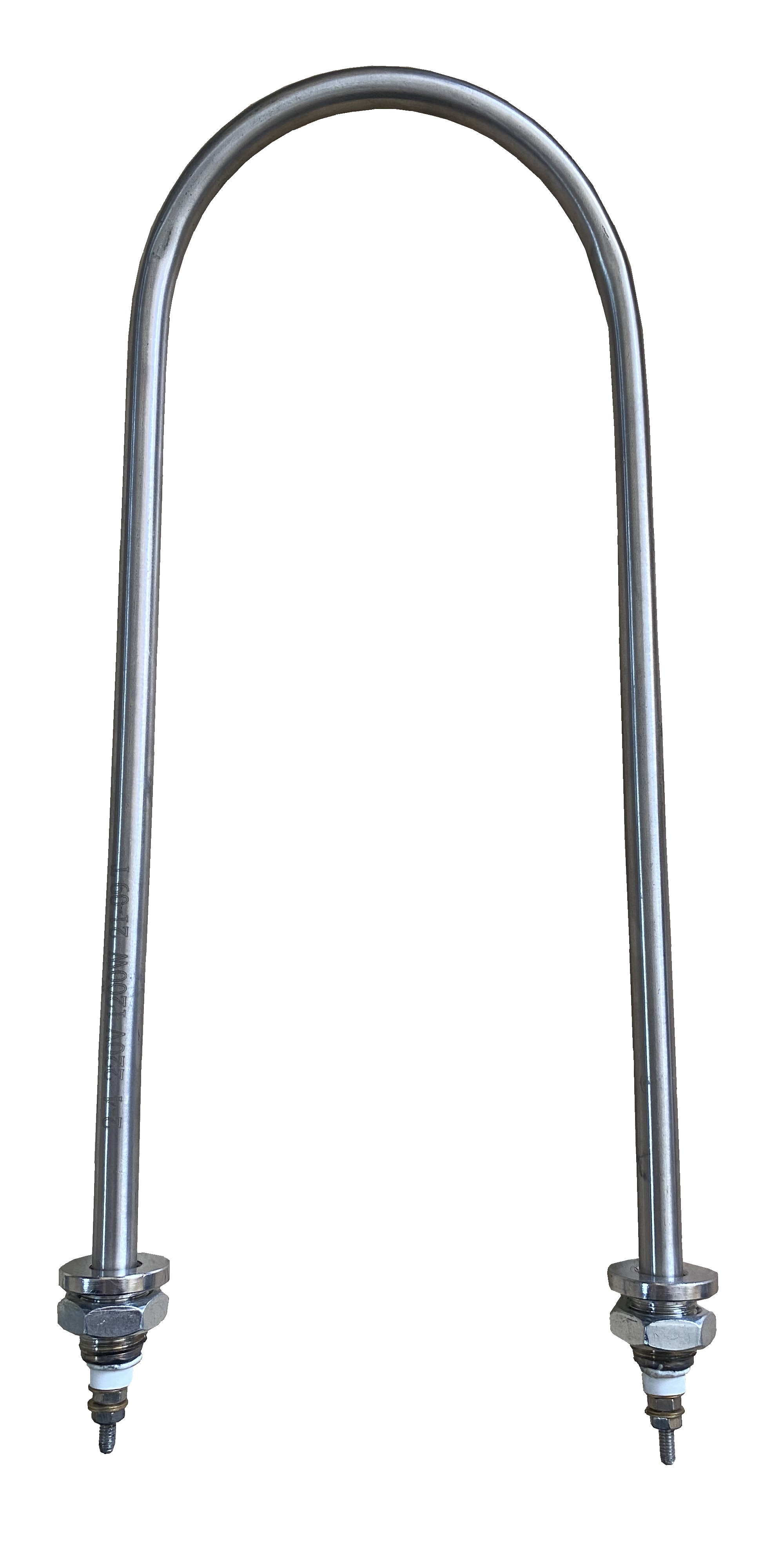

T-8 Heating element bath WB-8.

1,500.00 грн

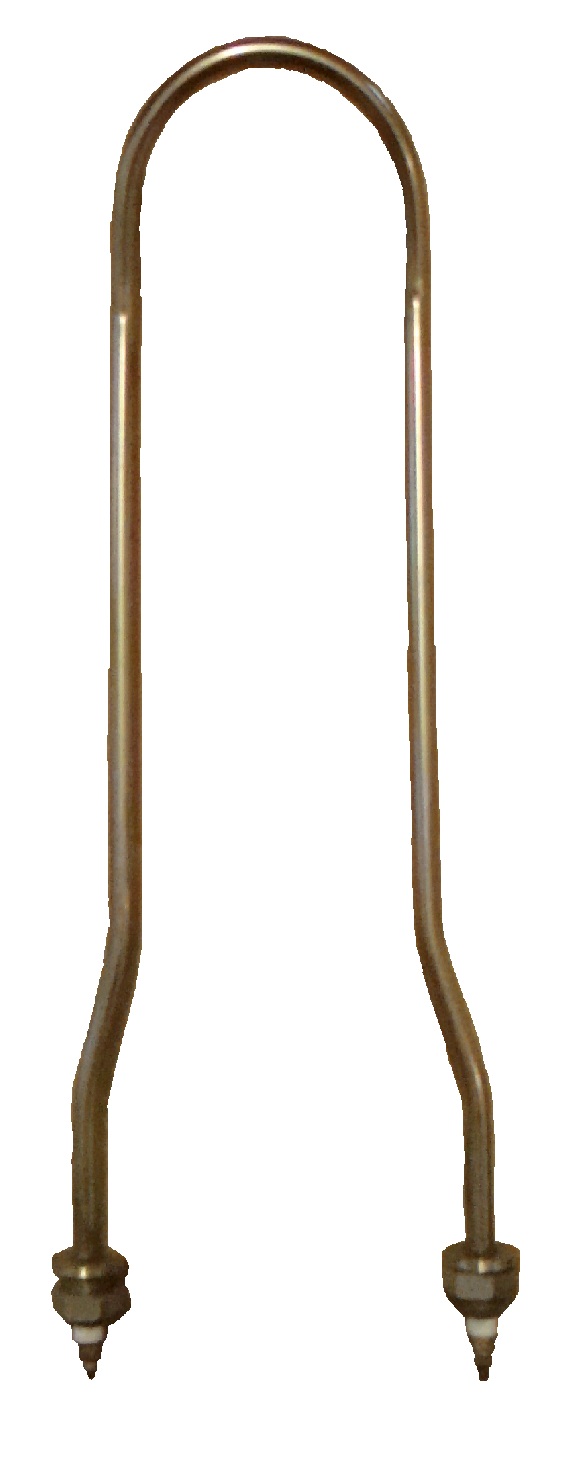

T-8К Heating element bath WB-8К.

1,887.00 грн

Difficulties with selection of goods?

Make one-click callback from our expert!

Перезвонить Медика

Latest

In a variety of medical equipment, there may be a need to quickly and safely heat water, paraffin or other compounds to the desired temperature. Such heating is carried out using special technical equipment called a heating element. The Medica online store offers its customers, individuals and legal entities, medical heating elements from leading manufacturing companies with a quality guarantee.

Medical heating element - what is it?

A heating element or tubular electric heating device uses electrical energy from a household electrical network to heat various materials. It is widely used in medicine to quickly increase the temperature of liquids, most often water and paraffin. The medical heating element is compact in size, reliable, safe and efficient, and is used in clinics, hospitals, laboratories, beauty salons and other medical and preventive institutions.

How does a medical heating element work?

Tubular medical electric heating devices consist of the following structural elements:

  • a curved metal tube with thin walls. Such tubes are made of corrosion-resistant materials - stainless steel, copper, brass or titanium alloy. The choice of material for the tube depends on the maximum heating temperature and the nature of the heated medium;
  • a heating coil, which is installed inside the tube. Such a spiral is made of wire and has a high specific electrical resistance;
  • a filler material that fills the space between the spiral and the inner surface of the tube;
  • two contact elements, with the help of which the heating element is connected to the electrical network;
  • insulators at the ends of the tube. Most often, insulators are made of porcelain.

The main parameters of medical electric heaters are:

  1. type of heated substance;
  2. power;
  3. shape of curved tube;
  4. overall dimensions and thickness of tube;
  5. parameters and frequency of electric current;
  6. nominal voltage of electrical network;
  7. working life of heater – minimum number of working hours.

Tubing elements of the company "Medica"

Trading and manufacturing company "Medica" offers its customers the following models of medical electric heating devices:

  • model T-8 for water bath VB-8;
  • Tubing element for paraffin heater model PE-6 (on six liters) type A;
  • Heating element for paraffin heater model PE-6 (six liters) type B.
