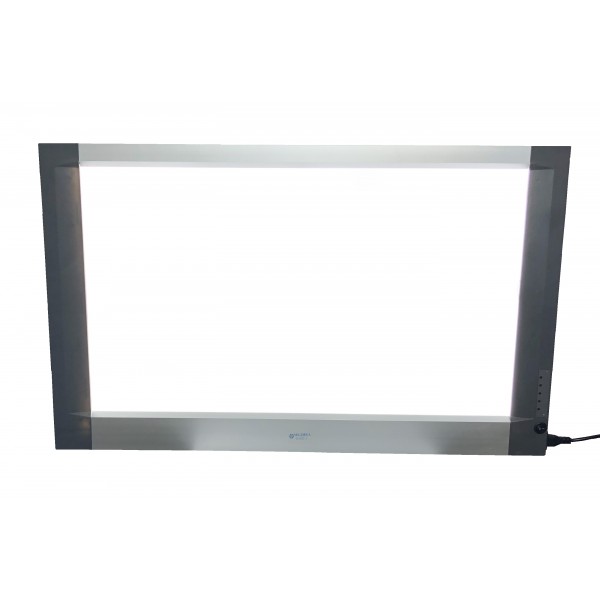

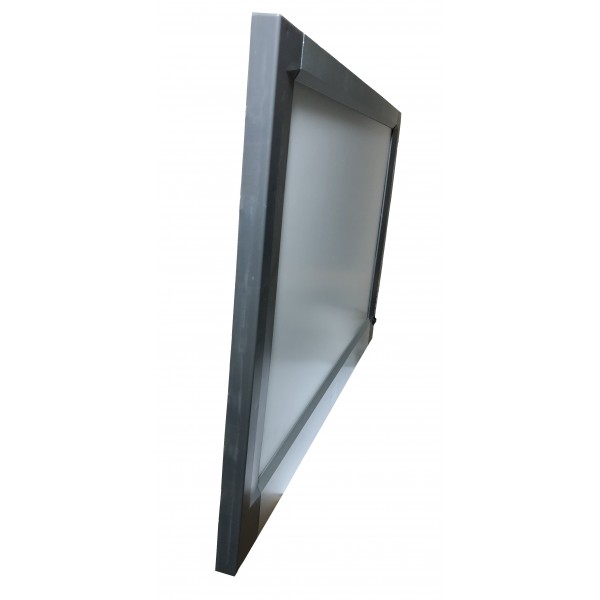

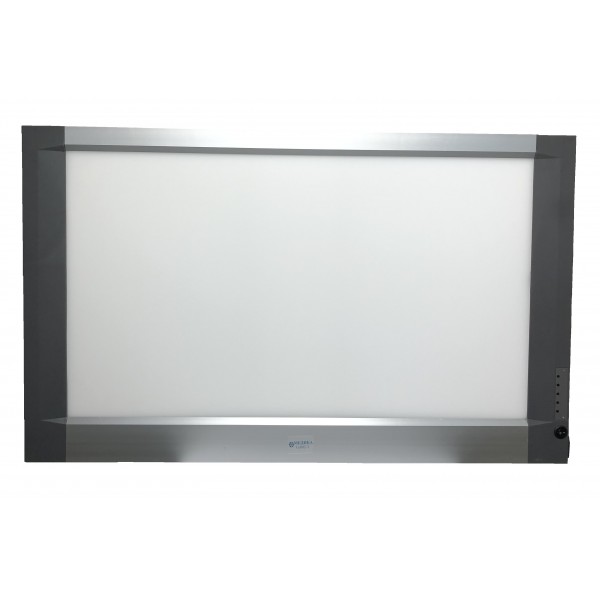

Negatoscope two-frame LED G -002-3 "MEDIKA"

This model is designed for comfortable viewing

2 standard x-rays. The LED light source allows you to see even the smallest details, while consuming a minimum of energy. Easy to operate and stand out with stylish design and slim body

Main characteristics

Length 915 mm

Height 560 mm

Width 25 mm

Body material Aluminum, plastic

Continuous working time 8

Power consumption 52 W

Power supply 220 V / 50 Hz

Light source LED bar

Color temperature ≤ 8000K

Viewing screen height 425 mm

Viewing screen width 720 mm

Maximum brightness in the center of the screen 4000 cd / m²

Screen illumination unevenness 20%

MTBF 20,000 h

Number of frames 2

Screen material Acrylic glass

Screen color white

Number of LED strips 2

Changing the brightness of the viewing screen 750-4000 cd / m2

Auto power on when installing snitch Yes

Transport characteristics

Gross weight (unit) 7.7 kg

Net weight (unit) 6,3 kg

Dimensions in packing (unit) 94 * 8.5 * 61 cm

Volume (unit) 0.048739 m³

Packaging (pcs) Carton box

Gross weight 41.6 kg

Dimensions in packing 97 * 47 * 64 cm

Volume 0.291776 m³

Packing Cardboard box
