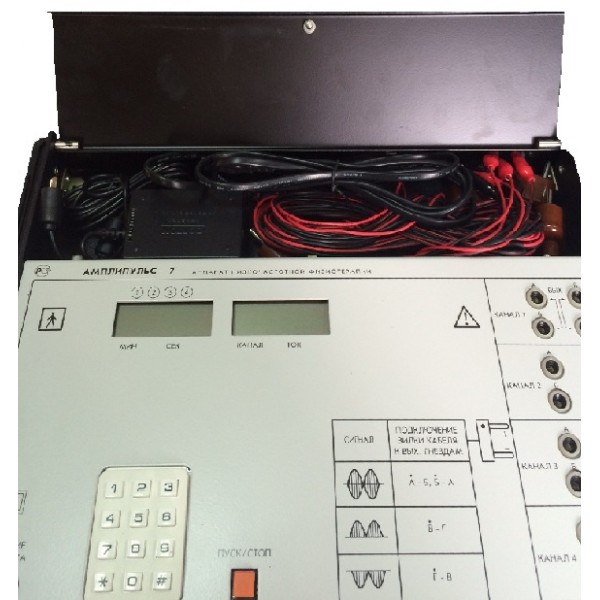

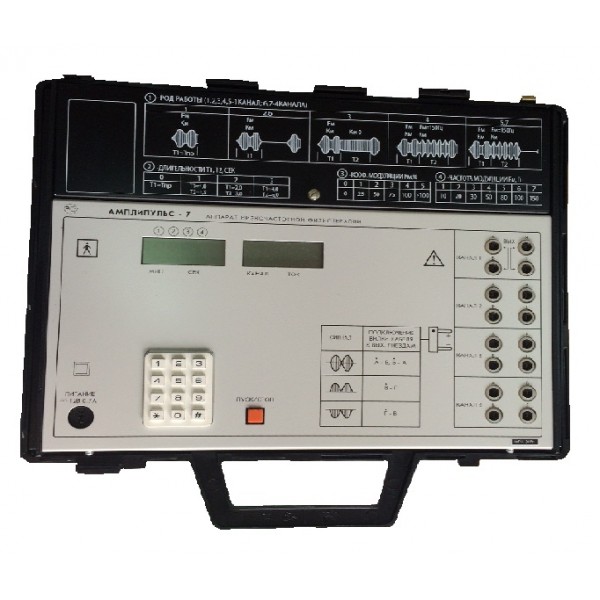

A-7 device Amplipuls-7

The device is designed for therapeutic effects moduli¬rovannymi sinusoidal currents of low frequencies in the treatment of a wide variety of diseases, as well as wellness and preventive purposes. Ability to use in hospitals, razichnyh fitness center, massage rooms.

Amplipuls-7 unit -therapy CMT differs from the previously produced similar devices:

programmability therapeutic effects with the ability to change the look of the impact of the program by changing the built-in micro-computer at the customer's request;

the presence of a ring mode on four channels with different settings of the current patient for each channel;

to simultaneously connect two pairs of electrodes on each of the 4 channels for simultaneous action on the patient direct and alternating current.

Technical characteristics of Amplipuls-7:

The device has four channels

and provides two modes of operation: single-channel and the ring (quad).

Each channel of the current made available at two outputs:

- Outlet "AB" dual power;

- At the output of the "B-G" unipolar current positive or negative polarity.

When operating as a single-output channel 1 device provides the following sort of operation:

"1" - continuous input current or a modulated carrier frequency fluctuation to select the modulation factor and the modulation frequency;

"2" - interrupted input with series of modulated oscillations with a choice and modulating frequency, alternating with pauses;

"3" - continuous input with series of modulated oscillations with a choice and modulating frequency, alternating with a series of unmodulated carrier frequency oscillations;

"4" - continuous input with series of modulated oscillations with a choice and modulating frequency, alternating with a series of modulated oscillations with a frequency of 150 Hz modulation;

"5" - interrupted input with series of modulated oscillations with a choice and modulating frequency, alternating with series of modulated oscillation frequency of 150 Hz and pauses;

When the four channels in the annular mode (alternating current effect on the patient's four channels), the device provides the following sort of operation:

"2" - interrupted input with series of modulated kolebaniys choice and modulating frequency, alternating with pauses (hereinafter the symbol for the annular mode - sort of work "6");

"5" - interrupted input with series of modulated oscillations with a choice and modulating frequency, alternating with series of modulated oscillation frequency of 150 Hz and pauses (hereinafter the symbol for the annular mode - sort of work "7").

Carrier frequency sinusoidal oscillations... 5000 Hz

Frequency modulating sine voltage set discretely takes values:...... 10, 20, 30, 50, 80, 100 and 150 Hz

The modulation index set discretely takes values ​​... 0, 25, 50, 75 and 100%

The device provides a digital display of the parameters when you type.

The unit provides a current patient unit with a coefficient of 100% modulation:

- From 0 to 100 mA............... active load (250 ± 50) ohms;

- From 0 to 30 mA................. on resistive load (1 ± 0,1) k

Power........................ 220 V, 50 Hz

Power consumption.....not more than 15 watts

Electrical.klass......... - 2, Type BF

The warranty period is 12 months

Package system:

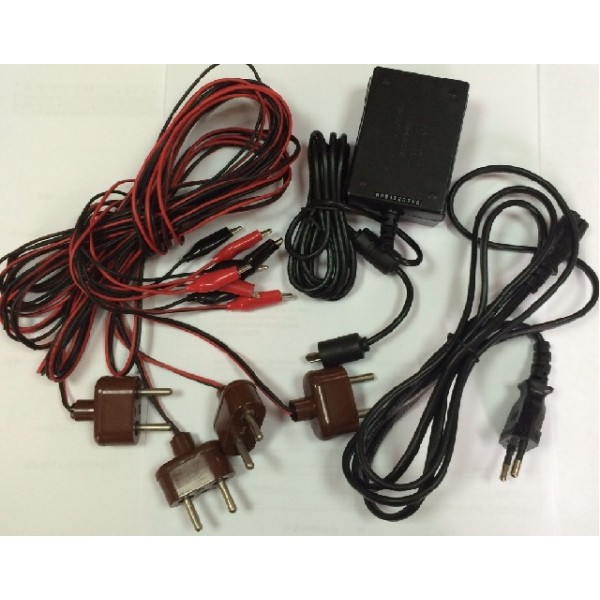

The unit, power supply -1 pcs.

cable "003" - 4 pieces. (for connection of the electrodes)

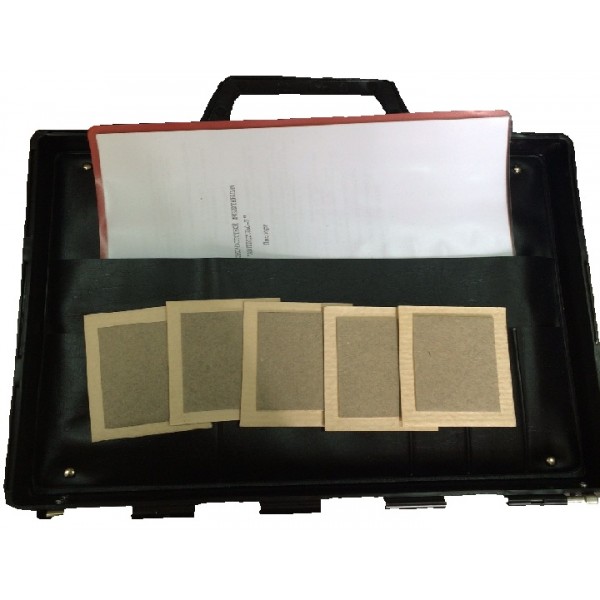

disposable electrode set 8 * 12 cm - 5 pcs.

passport guidelines.

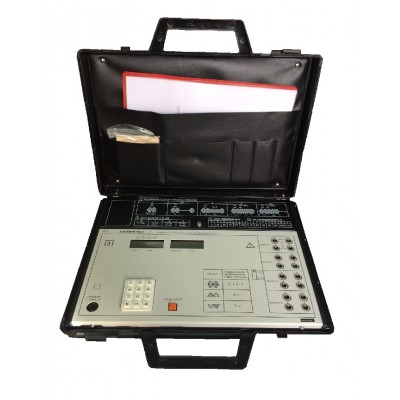

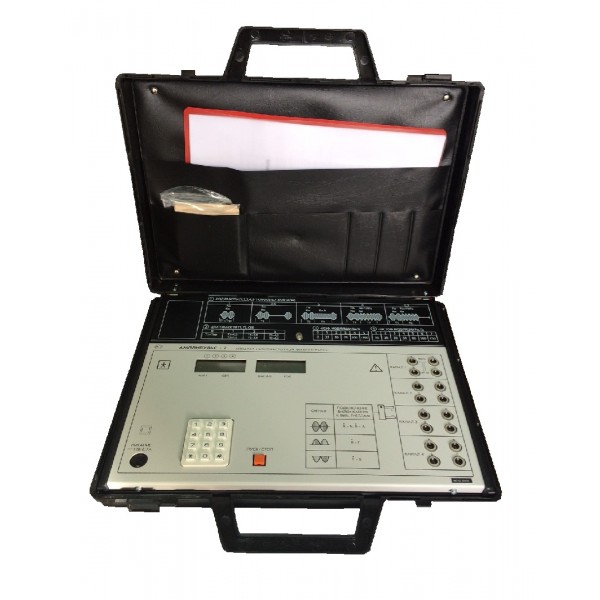

Packaging: Plastic case. Dimensions 395h367h75 mm.

 Weight not more than 4 kg.
